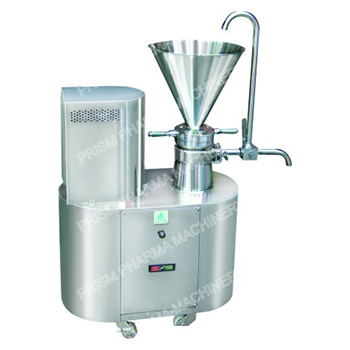

A colloid mill is a machine that is used to reduce the particle size of a solid in suspension in a liquid, or to reduce the droplet size of a liquid suspended in another liquid. This is done by applying high levels of hydraulic shear to the process liquid. It is frequently used to increase the stability of suspensions and emulsions. The colloid mill is used for various applications such as Superfine grinding, homogenizing, emulsifying, dispersing, mixing and extracting of liquids, ointments and highly viscous products in pharmaceutical, cosmetics, suspensions & emulsion industry.
The product is fed to the hopper which leads the product into the gap between rotor and stator. The product is subjected to a high degree of shearing, cutting and rubbing between two metal toothed surfaces of rotor and stator and towards the discharge section. The processed product continuously leaves the mill through drain pipe if required, it can be re-circulated by three way cock and re-circulating pipe assembly.
| MODEL | PCDM - 250 | PCDM -500 | PCMD-1000 |
|---|---|---|---|
| Output - Liter / Hour | 150 to 1500 | 150 to 2500 | 250 to 5000 |
| Drive type Option | Vertical OR Horizontal | Vertical OR Horizontal | Vertical OR Horizontal |
| Rotor Speed- RPM | 2800 | 2800 | 2800 |
| Hopper Capacity- Liter | 15 | 15 | 25 |
| Seal Type | Rubber Silicon | Rubber Silicon | Rubber Silicon |
| Partial Size Reduction- Micron | 5 to 10 | 5 to 10 | 5 to 10 |
| Electric Motor HP/kW | 3 / 2.25 | 5 / 3.75 | 10/7.5 |
