Cone Mill

Application & Process

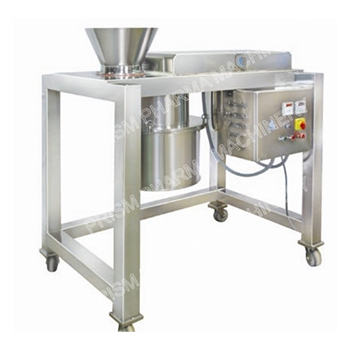

The Prism Cone Mill is used for achieving de-lumping, dispersion, de-agglomeration, fine grinding, dry and wet milling, uniform size reduction, sieving, and mixing in the pharmaceutical, food, fine chemical, personal care, and cosmetics industries.

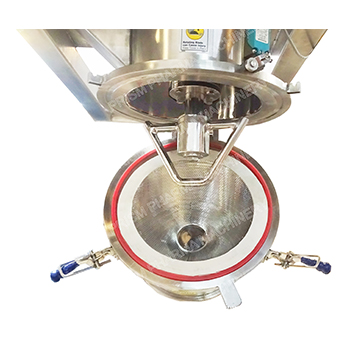

The product is poured into the feed hopper of the Cone Mill. In the conical screen chamber, a rotating impeller imparts a vortex flow pattern to the in-feed product. Centrifugal acceleration forces the product outward to the screen surface, ensuring continuous delivery into the “action zone” between the screen and impeller. The granulation/sizing operation does not heat the product due to better air circulation and lesser impact action. In the “action zone,” the material is uniformly sized and instantaneously passed tangentially through the screen openings. The finished product is discharged at the bottom of the milling chamber.

Salient Features

• Design is cGMP - Current Good Manufacturing Practices compliance.
• All product contact parts are made of AISI 316/316L stainless steel, while non-contact parts are made of AISI 304 stainless steel.
• Capable of High speed milling, Granulating, Mixing and Size Reduction.
• Uniform size reduction of wet material.
• Cone blade with cone type sieve for size reduction.
• AC frequency variable speed 100 to 1400 RPM.
• Easy removable contact parts for cleaning, inspection and easy Mobility.
• Available with a wide range of Perforated Sieves.
• Fitted with castor wheels for easy mobility.

Safety Features

• Limit switch at Discharge hopper.
• Overload relay Protection and Emergency stop button.
