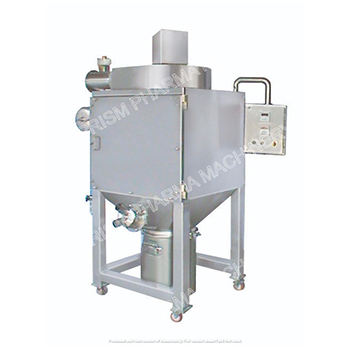

The Prism Dust Extractor unit is used for controlling dust in process of Tableting and packing. The unit strongly recommends the use of dust control equipment with all Tablet press and De-duster.
Dust laden air enters the collector through an expansion chamber, where heavy dust particles are deposited by gravity. The fine dust passes upwards through single large orifice and is finally collected by filter. There is an effective snap action shaking mechanism for shaking filter and dust is deposited into drawer type tray. There is a large door for changing filter bag and cleaning of the machine.
| MODEL | PDE - 150 | PDE-300 | PDE-1000 |
|---|---|---|---|
| Suction Capacity | 150 cfm | 300 cfm | 1000 cfm |
| Filtration Area | 9 sq ft. | 12 sq ft. | 32 sq ft. |
| Dust Storage Capacity | 3/4 cu.feet | 3/4 cu/feet | 50 Liter |
| Electric Motor | 1 HP / 0.75 kW | 1.5 HP / 1.12 kW | 2 HP / 1.5kW |
