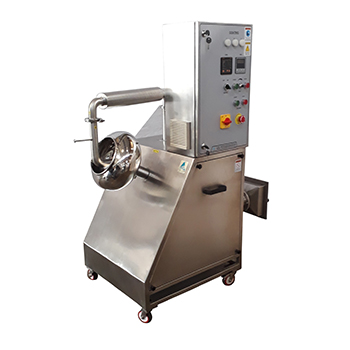

Lab Conventional Coating Machine

Application & Process

The Laboratory scale conventional costing machine is ideal for film and sugar coating. The machine is available with 12″, 14″,16″, 18″ and 20″ size of stainless steel coating pan. The machine is designed with fabricated structure fitted with SS enclosure and drive unit of motor and reduction gear box. Machine has variable speed drive to achieve 5 to 15 RPM by variable speed pulley. The machine is mounted on anti vibration pads which avoids foundation and vibration.

A hot air blower system is provided separately on trolley for easy cleaning and setting. The system has thermostat controller to selected temperatures between 40º C to 100º C by electric Heater. The complete systems fitted suitable motor, blower, piping and nozzle for hot air flow.

Salient Features

  • Design as per GMP requirements.
  • Contact parts of SS 316 and Non contact parts SS 304 quality.
  • Available in interchange pan with 12", 14, 16", 18" & 20" size.
  • Easy to inter change to polishing pan and other size coating pan.
  • The machine Inbuilt with hot air system.
  • Ac frequency drive for pan speed.

MODELPCP- 12
Pan Size12 " 14" 16" 18" 20"
Loading Capacity in Kg1Kg 3 kg. 5 Kg. 8 Kg. 10 Kg
Pan DriveDrive with Reduction gear Box
Pan Angle30º
Pan RPM5 to 15 by VFD
Total Electric Power2.25 kW
