Application & Process

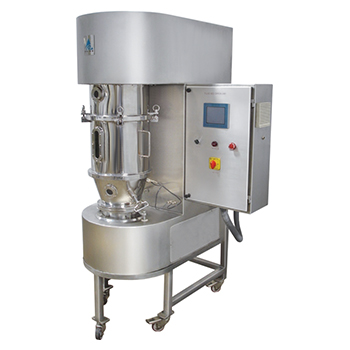

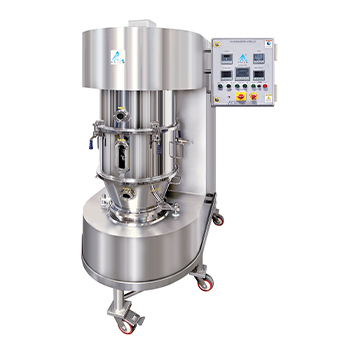

The prism compact NewLABOfbd- Fluid Bed Dryer model Fluid bed technology is a offer an effective and efficient method for drying and agglomerating. The Lab Fluid Bed Dryer has universal application for drying of powder and granules..
The overall concepts of the NewLABOfbd stream from similar of process based on production model and common needs of consistent processing and ease for operation and cleaning.
The Drying process: Warm air is blown through a perforated distributor to rapidly and gently dry materials until the required residual moisture content is reached. Moisture evaporated from product is exhausted with drying air.
Salient Features
- Designed strictly compliance with the stipulation of cGMP.
- Product contact parts AISI 316 / 316 L Quality & Food grade silicon.
- Capacity available from 1 Kg to 15 Kg for laboratory and pilot scale plants.
- Single Pot Technology for mixing, drying & Agglomerating.
- Inbuilt Inlet Air handler with S.S. Electric heater, 20 & 5 micron filter & 0.3 micron HEPA.
- Exhaust air blower with 20 micron filter.
Safety Features
- Explosion flap fitted with aluminum material for safety.
- Auto shutoff system for over limit temperature & when process is completed.
- Air pressure switch installed to ensure pressure is in limit.
- Differential pressure indicator for filter bag, Product sieve and HEPA Filter.
- Safe earthling system for static current & Overload relay controls.
- Option for Interchangeable Bowl 5 kg, 3 Kg, and 1 Kg.
- Option for advance PLC controls system with HMI Touch screen.
| MODEL- Lab & Pilot | PFBD-1 | PFBD-5 Interchangeable Bowl | PFBD-15 |
| Working Capacity in Kg. | 1 | 5 | 15 |
| Total Electric Power | 3.75 kW | 7.12 kW | 23.5 kW |
| Drying Temperature °C | 40 to 85 | 40 to 85 | 40 to 85 |
