Lab Multi Mill

Application & Process

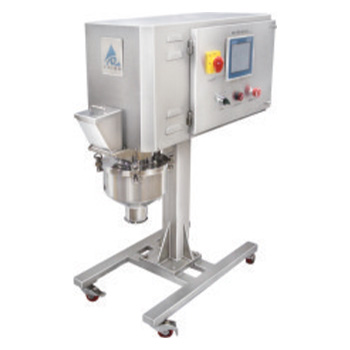

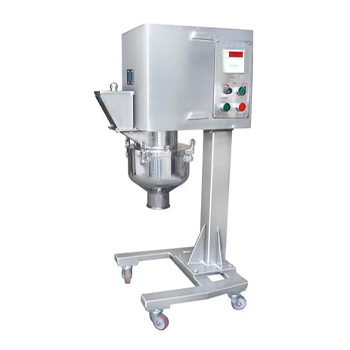

Table top Laboratory Multi Mill is used for wet and dry granulation in pharmacy colleges, R&D institutions and pharmaceutical industry for research and development of pharmaceutical products.

It is a self contained portable unit useful for granulating, pulverizing, mixing and size reduction. The Multi mill operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction.

The material is fed in the hopper, shredded and milled through beaters consisting of knife and impact edges. The rotation speed and direction of beaters could be adjusted through control panel. The material then passes through the cylindrical screen in spiral motion which helps keeping the temperature low and avoids chocking of material during the process. The material is collected in the container placed under the hopper.

In multi mill particle size reduction is done through impact in air, on material by blades moving at high speeds, inside a cylindrical hopper.

Salient Features

• Design is cGMP - Current Good Manufacturing Practices compliance.
• All contact parts AISI 316 & non contact parts AISI 304.
• Easy to movability.
• Direct drive with A C Frequency variable speed up to 2880 RPM.
• High operating simplicity for easy cleaning of contact parts.
• "CE" certificate.
