Application & Process
Prism Lab Tablet Press Machine is used for production of simple and precise tablets from powder in Pharmaceutical and relevant Industries for research & development.

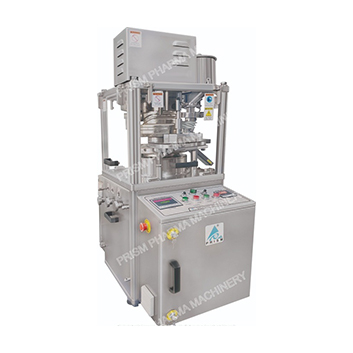

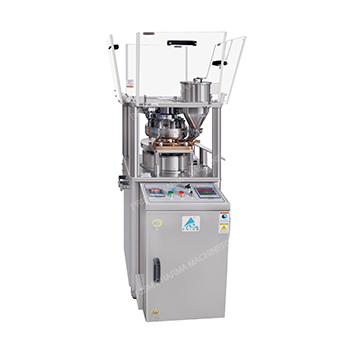

NewLABOTabXpress Prism Lab Scale Single Sided Rotary Tablet Press is compact table top machine widely used for formulation development in R&D for small batch of tablet production. The NewLABOTabXpress Prism Lab Scale Single Sided Rotary Tablet Press is designed in an effort to exceed the highest cGMP requirement with use of advance technology and to ensure the most the modern ergonomic aspects and economical and efficient to tablet production. It is easy to operate, clean and maintain.
Salient Features
- Design is cGMP - Current Good Manufacturing Practices compliance.
- All Product contact parts AISI 316/316L & non contact parts AISI 304.
- NewLABOTabXpress Lab Scale Single Sided Rotary Tablet Press is offered in three different Model viz. Tooling 8 Station with "D" Type, 10 Station with "B" Tooling and 12 Station with combined "D", "B" and "BB" Type- 4 Nos. station of each type.
- Available in "D", "B" & "BB" tooling manufactured to meet the requirement of Research & Development as per SUPAC (scale up post approval changes) & Pilot Production.
- Simple & Convenient Operation, Changeover, Cleanliness, Operator Protection & Ease to Maintenance.
- Designed strictly compliance with the stipulation of cGMP.
- Standard Tooling, No special tooling are used in this machine.
- Versatility & simulation R&D Scale Tablet Press with maximum capacity of 18,000# tablets per hour
- Through small and compact machine, almost all the features of standard medium batch are incorporated.
- AC Frequency Variable Speed Drive for Turret.
- Open type fixed gravity feed frame.
- Tablet thickness setting, weight adjustment and speed controls are located outside of the machine.
- Lower guard of S.S.304Q & Upper Guard of Acrylic Glass Surrounding with limit switch.
Safety Features
- Door interlocking.
- All controls outside of compression zone for safety.
- Overload relay controls and Emergency stop.
- Pre Pressing system.
- Rotary force Powder Feeder.
- PLC controls with HMI Touch Screen Interface.
- SCADA system with 21 CFR Part 11 Compliance.
| Model | PLTCMD-8 | PLTCMD-10 | PLTCMD- 12 |
| No. of Station | 8 | 10 | 12 |
| Type of Tooling | D | B | D", "B"& "BB"- 4 Nos. Each Combined Tooling |
| Output/Hour | 2000 to 14,400 | 2000 to 18,000 | Each Tooling 1000 to 7,200 |
| Max. Operating pressure | 60 KN | 40 KN | 40 KN |
| Max. Tablet Diameter | 22 mm | 16 mm | 16 mm |
| Max depth of fill | 20.5 mm | 17.5 mm | 17.5 mm |
| Main Electric Motor | 1.5 hp/1.1 Kw | 1.5 hp/1.1 Kw | 1.5 hp/1.1 Kw |
