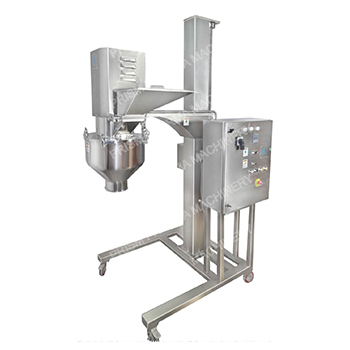

Multi Mill

Application & Process

Prism Multi Mill is used for wet and dry granulation, pulverization, milling, shredding, chopping, size reduction in Pharmaceuticals, Nutraceuticals, Food, Chemicals, Cosmetics, Ceramics, Colors, Dyestuff, Food products etc.

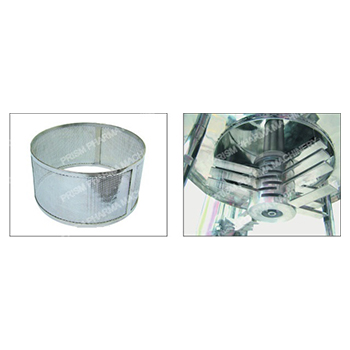

In Prism Multi Mill particle size reduction is done through impact in air, on material by blades moving at high speeds, inside a cylindrical sieve. The particles of the desired size pass out through the screen placed inside the hopper.

Salient Features

• Design is cGMP - Current Good Manufacturing Practices compliance.
• All Product contact parts AISI 316/316L & non contact parts AISI 304.
• Capable of high-speed milling, granulating, pulverizing, mixing and size reduction of both wet and dry materials.
• Output capacity 50 Kg to 200 Kg per hour.
• Easy removable contact parts for cleaning & inspection.
• Fitted with castor wheels for easy mobility.
• Variable force by swing better having knife & impact edges are rotating within screen.
• Direction of beaters can be changed by forward- reversible switch.
• Available with a wide range of perforated and wire-mesh sieves.

Safety Features

• Overload Protection.
• Safety Limit Switch at Bowl.
