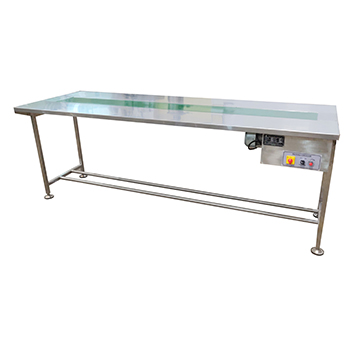

The Prism Packing conveyor belt is having stainless steel Table Top with moving Endless sandwich belt in the center. Tabletop is fixed to the same structure made out of SS square pipe & supported on adjustable bolts. Tabletop is of 12 inches working space on both side of the conveyor belt for final visual inspection & packing into the box.
The conveyor belt brings the container or products from the labeling/blister/strip machine, These bottles/products operators in turn pick up the bottles/products & visually inspect the bottles/products & doing necessary action like primary packing, secondary packing, picking & placing at proper place.
| Model | PPCB-9 | PPCB-12 |
|---|---|---|
| Direction of movement | Left to Right | Left to Right |
| Speed | 7.5 Mtr./Min. Upto 12 Feet long 12 Mtr./Min. from 13 Feet long | 7.5 Mtr./Min. Upto 12 Feet long 12 Mtr./Min. from 13 Feet long |
| Power Consumption | 0.25 HP/ 220 Volts / 50Hz upto 12 Feet long 0.75 HP/ 220 Volts / 50Hz upto 13 Feet to 24 Feet long | 0.25 HP/ 220 Volts / 50Hz upto 12 Feet long 0.75 HP/ 220 Volts / 50Hz upto 13 Feet to 24 Feet long |
| Height of Conveyor | 860mm to 910 mm | 860mm to 910 mm |
| Belt Width | 9" | 12" |
| Belt Details | PVC, Endless 2 ply sandwich, 2 mm thickness | PVC, Endless 2 ply sandwich, 2 mm thickness |
| Net weight | Depend On Length | Depend On Length |
