Application & Process

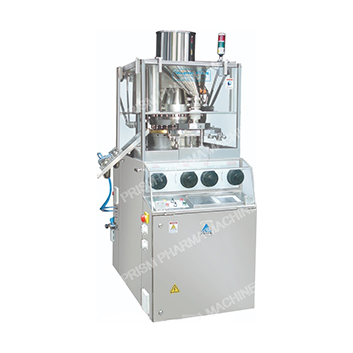

Prism TabXpress-PTX Tablet Press Machine is used for production of simple and precise tablets from powder in Pharmaceutical and relevant Industries.
Prism TabXpress-PTX is a high speed single sided central drive Pre compression Rotary Tablet Press suitable for medium batch size production.
Prism TabXpress-PTX designed in an effort to exceed the highest cGMP requirement and to ensure the most economical and efficient tablet production. The Prism TabXpress-PTX features a unique ergonomic design for easy to operate, easy to fast changeover, easy to clean with minimum down time. The TabXpress Tablet Press is completely separated into three zones i.e. Tablet Compression zone, Machine service zone and Electrical controls zone. The Optional feature of Prism TabXpress-PTX machine can provide with Touch Screen Operate Interface with PLC Controls, which is mounted in a separate electric controls cabinet.
Prism TabXpress PTX Tablet Press is offered in four different models viz. Tooling 26 Stn “D” Type, 32 Stn “B” Type, 40 Stn “BB” Type.
The Machine Ergonomics Design Concept :
The Prism TabXpress-PTX has been completely new designed according to the most modern ergonomic aspects.
- cGMP confirm.
- Machine’s basic construction with separate compression zone and drive zone.
- Fast Cleaning and Changeover capability.
- Stainless Steel and Acrylic Glass Surrounding.
- Easy to Operate and Maintenance.
Salient Features
- Design is cGMP - Current Good Manufacturing Practices compliance.
- All Product contact parts AISI 316/316L & non contact parts AISI 304.
- TabXpress- PTX is high speed single sided tablet press with central drive, pre compression and suitable for medium size batch production and offered in three model "D" , "B" & "BB" Tooling.
- Simple & Convenient Operation, Changeover, Cleanliness, Operator Protection & Ease to Maintenance.
- Single sided compression with higher output.
- Pre-Compression System to improve compressibility and tablet Quality.
- All parameters setting of tablet; like tablet thickness, weight adjustment, Pre-compression Pressure, Main Pressure are provided in front of the machine and outside the compression zone.
- Tablet parameters can be tuned during operations from outside the tableting zone.
- Easy accessibility for quick cleaning and product changeover.
- Drive system completely enclosed and sealed off from the pressing zone.
- Turret Drive is Central Drive from Closed Gearbox, No Gearing on Turret.
- Electromagnetic Clutch for turret drive.
- AC Frequency variable drive for Turret Motor and Feeder Motor.
- Force feeder systems with bottom drive for uniform filling to weight consistency.
- 3 Pcs. Turret with S.S 316 Die Pot.
- Upper Punch penetration & Lower Punch scraper seal.
- Auto Lubrication system.
- S.S. 304 closer at bottom drive zone and acrylic glass surrounding at compression zone.
Safety Features
- Upper Guard Door interlocking.
- Overload pressure release mechanism
- Overload relay & Emergency stop.
- Powder level sensor for hopper.
- Start and Stop times Rejection and Sampling device
- PLC Controls with HMI touch screen.
- SCADA system with 21 CFR Part 11 Compliance.
| Model | TabXpress PTX- 26 | TabXpress PTX- 32 | TabXpress PTX-40 |
| No. of Station | 26 | 32 | 40 |
| Type of Tooling | D | B | BB |
| Output-tablets per Hour | 15,600 to 1,09,200 | 19,200 to 1,34,400 | 24,000 to 1,68,000 |
| Max. Operating Pressure-Main | 100 kN | 80 kN | 80 kN |
| Max. Operating Pressure- Pre-Press | 18 kN | 18 kN | 18 kN |
| Max. Operating pressure | 25 mm | 16 mm | 11 mm |
| Depth of Fill | 20.5 mm | 17.5 mm | 17.5 mm |
| Upper punch penetration | 3 to 6 mm | 3 to 6 mm | 3 to 6 mm |
| Total Power consumption | 6.75 HP / 5.06 kW | 6.75 HP / 5.06 kW | 6.75 HP / 5.06 kW |
