Application & Process
Prism Tray drying ovens are used to effectively and economically dry pharmaceutical powders, granules, pigments, food, bakery products, electrodes, chemicals, plastics, and more through hot air recirculation.

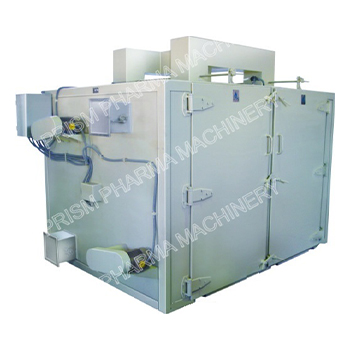

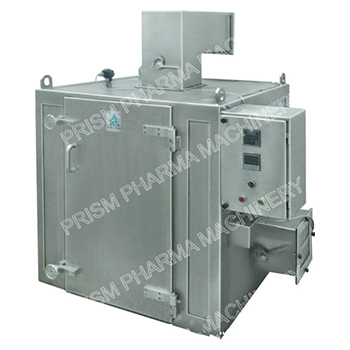

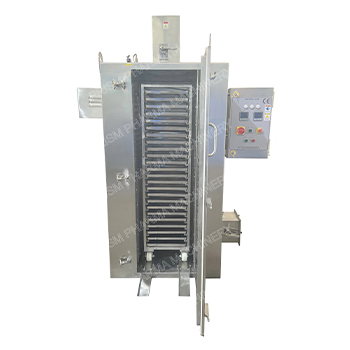

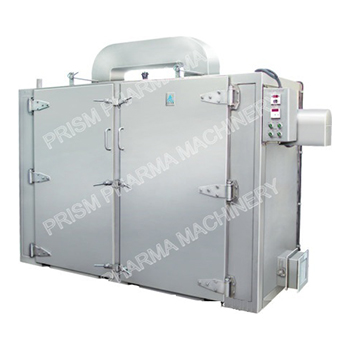

A Prism Tray Dryer is an enclosed, insulated chamber in which trays are stacked on top of each other. Heat transfer is accomplished by circulating hot air via electric heaters or other heating media. Blower fans are installed to ensure proper air circulation and heat transfer.
Salient Features
- Available in 24, 48, 96 & 192 Trays.
- Design is cGMP - Current Good Manufacturing Practices compliance.
- All contact parts are made of AISI 316/316L/304 stainless steel, while non-contact parts are made of AISI 304 stainless steel or M.S. with paint.
- Highly effective, uniform air recirculation system with low-speed fan.
- Includes inlet air filter and damper, as well as exhaust air damper for air flow control.
- Controls panel with digital temperature controller and process timer.
- Mobile trolleys provided for loading and unloading trays into the dryer.
Safety Features
- Automatic Temperature & controls, Process cycle controls.
- Overload relay Protection and Emergency stop button.
- Advance PLC controls with touch screen.
- SCADA system with 21 CFR Part 11 Compliance.
- Heating system Electrical / Steam / Gas Heating.
- Separate Inlet AHU with HEPA Filtration.
- Perforated tray.
- Explosion proof motor and operating panel.
| Model | PTD-12 | PTD-16 | PTD-24 | PTD-48 | PTD-96 | PTD-192 |
| Number of Trays | 12 | 16 | 24 | 48 | 96 | 192 |
| Loading Capacity (kg) | 36 | 48 | 60 | 240 | 480 | 960 |
