Vibro Sifter

Application & Process

The Prism Vibro Sifter is used for screening, sieving, and grading for solid-liquid separation in various industries such as pharmaceuticals, chemicals, cosmetics, plastics, paints, minerals, rubber compounds, metal powders, detergents, pesticides, fertilizers, dyestuffs and pigments industries. It is a process used to separate desired and undersized elements from a combination of solid-to-solid (where two solids generally have different properties) and solid-to-liquid materials.

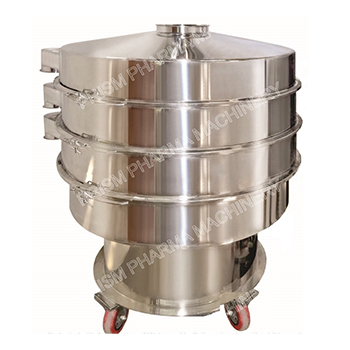

The Prism Vibro Sifter consists of a screen placed on a base plate attached centrally to a gyratory motor. The material is fed through the inlet located on the top and dropped on the screen. Particles smaller than the mesh size pass through the screen, while larger-sized particles are released through an outlet. The combination of the vibratory motor and the weights placed on top and bottom of the screen provides the desired filtration or separation of the material. The total assembly is mounted on suitable springs so that it becomes an independent body that vibrates without transmitting any vibrations to the foundations.

Salient Features

• Design complies with cGMP (Current Good Manufacturing Practices).
• All product contact parts are made of AISI 316/316L stainless steel, while non-contact parts are made of AISI 304 stainless steel.
• Powerful vibration generated by gyratory motion of a special Vibro motor.
• Side outlet for fines & sized material discharge.
• Easy to move and clean.
• Noiseless operation.
• Sieve made with lead-free material and with silicon molded.

Safety Features

• Overload Relay protection.
